[開箱] 疾風戰士! Galaxy影馳 GTX550Ti 2GB風神版

看板PC_Shopping (個人電腦購買)作者ChangElvis (羽神翼)時間14年前 (2011/04/11 02:23)推噓14(14推 0噓 3→)

留言17則, 17人參與討論串1/1

風吹~風吹~好讀版 http://www.xfastest.com/viewthread.php?tid=59521&fromuid=38227 ============================================================================== Galaxy 影馳在去年針對nVIDIA GeForce GTX 400系列發表風神版散熱器的顯示卡，其可調整/拆卸式風扇的設計真的是大受好評不僅可依照環境調整風流方向，更方便一般玩家或是網咖店家清理散熱器內部的灰塵，大大的延長顯示卡壽命如今風神版的散熱器也搭配上GTX 550 Ti，Galaxy 影馳推出2GB的大容量顯存版本，帶來更疾速卓越的效能盒裝外觀 http://pic.xfastest.com/elvis/Review/Galaxy-550Ti-GC/Galaxy-550Ti-GC-01.png

GTX 550 Ti的統規包裝規格標籤 http://pic.xfastest.com/elvis/Review/Galaxy-550Ti-GC/Galaxy-550Ti-GC-02.png

詳細標明規格與散熱器樣式盒裝配件 http://pic.xfastest.com/elvis/Review/Galaxy-550Ti-GC/Galaxy-550Ti-GC-03.png

說明書、驅動光碟、雙大4 pin轉PCI-E 6 pin電源轉接線顯示卡本體 http://pic.xfastest.com/elvis/Review/Galaxy-550Ti-GC/Galaxy-550Ti-GC-04.png

黑化樣式的風神版散熱器 I/O Port http://pic.xfastest.com/elvis/Review/Galaxy-550Ti-GC/Galaxy-550Ti-GC-05.png

HDMI、D-Sub、DVI-I 顯示卡頂部 http://pic.xfastest.com/elvis/Review/Galaxy-550Ti-GC/Galaxy-550Ti-GC-06.png

單PCI-E 6 pin電源輸入顯示卡底部 http://pic.xfastest.com/elvis/Review/Galaxy-550Ti-GC/Galaxy-550Ti-GC-07.png

顯示卡尾端 http://pic.xfastest.com/elvis/Review/Galaxy-550Ti-GC/Galaxy-550Ti-GC-08.png

廢熱排風處顯示卡背面 http://pic.xfastest.com/elvis/Review/Galaxy-550Ti-GC/Galaxy-550Ti-GC-09.png

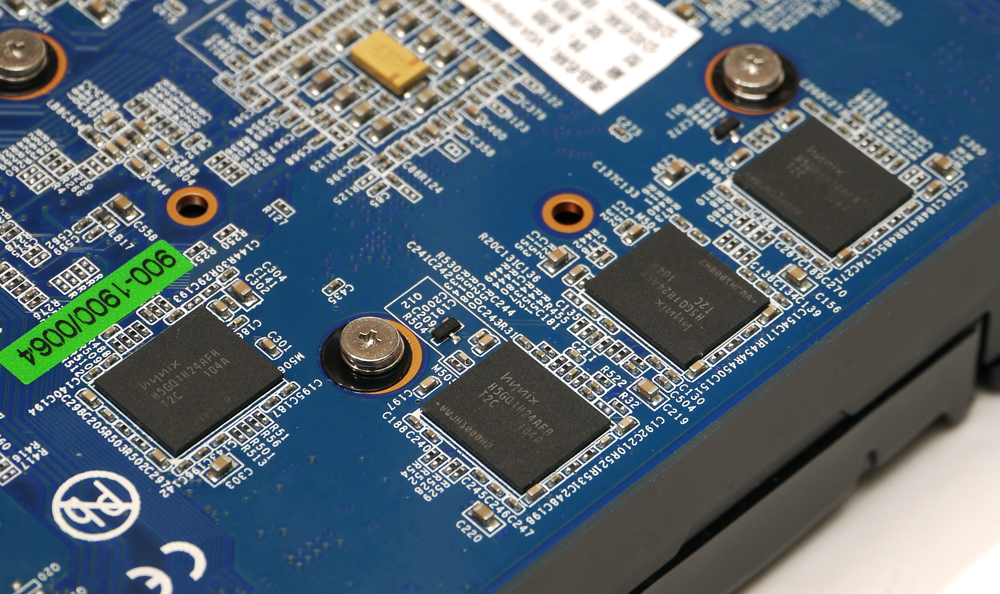

2GB的GDDR5部分鑲嵌在顯示卡背部有4顆Hynix H5GQ1H24AFR-T2C的1Gb GDDR5顆粒 http://pic.xfastest.com/elvis/Review/Galaxy-550Ti-GC/Galaxy-550Ti-GC-10.png

散熱器固定方式採用彈簧螺絲以及2顆Hynix H5GQ2H24MFR-T2C的2Gb GDDR5顆粒 http://pic.xfastest.com/elvis/Review/Galaxy-550Ti-GC/Galaxy-550Ti-GC-11.png

風神散熱器設計 http://pic.xfastest.com/elvis/Review/Galaxy-550Ti-GC/Galaxy-550Ti-GC-12.png

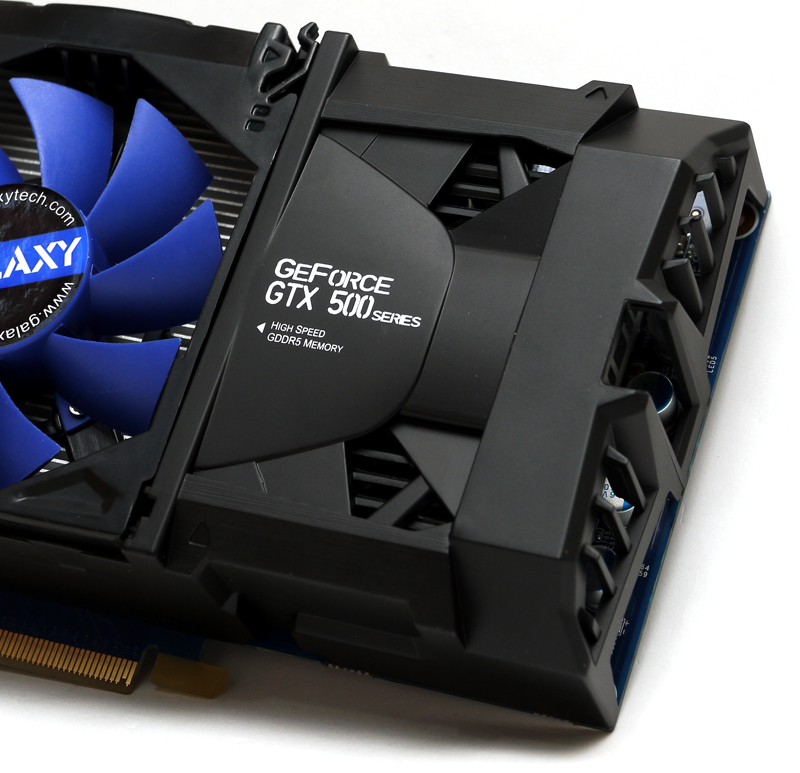

導風罩雖然是塑膠材質，不過霧面黑化的效果做的非常到位 http://pic.xfastest.com/elvis/Review/Galaxy-550Ti-GC/Galaxy-550Ti-GC-13.png

極具科技感的稜角線條，更增添幾分質感 http://pic.xfastest.com/elvis/Review/Galaxy-550Ti-GC/Galaxy-550Ti-GC-14.png

風神版的精隨 http://pic.xfastest.com/elvis/Review/Galaxy-550Ti-GC/Galaxy-550Ti-GC-15.png

可調整的風扇 http://pic.xfastest.com/elvis/Review/Galaxy-550Ti-GC/Galaxy-550Ti-GC-16.png

打開90ﾟ http://pic.xfastest.com/elvis/Review/Galaxy-550Ti-GC/Galaxy-550Ti-GC-17.png

打開180ﾟ http://pic.xfastest.com/elvis/Review/Galaxy-550Ti-GC/Galaxy-550Ti-GC-18.png

可完全拆卸 http://pic.xfastest.com/elvis/Review/Galaxy-550Ti-GC/Galaxy-550Ti-GC-19.png

毋須將散器卸下即可拆下風扇，方便清除灰塵卸下散熱器 http://pic.xfastest.com/elvis/Review/Galaxy-550Ti-GC/Galaxy-550Ti-GC-20.png

散熱器與GPU接觸面 http://pic.xfastest.com/elvis/Review/Galaxy-550Ti-GC/Galaxy-550Ti-GC-21.png

大塊銅底散熱器扣具螺絲固定點有包覆緩衝防震橡膠墊圈 http://pic.xfastest.com/elvis/Review/Galaxy-550Ti-GC/Galaxy-550Ti-GC-22.png

包覆銅底的是大面積的鋁鰭 http://pic.xfastest.com/elvis/Review/Galaxy-550Ti-GC/Galaxy-550Ti-GC-23.png

風扇採用4 pin PWM溫控式 http://pic.xfastest.com/elvis/Review/Galaxy-550Ti-GC/Galaxy-550Ti-GC-24.png

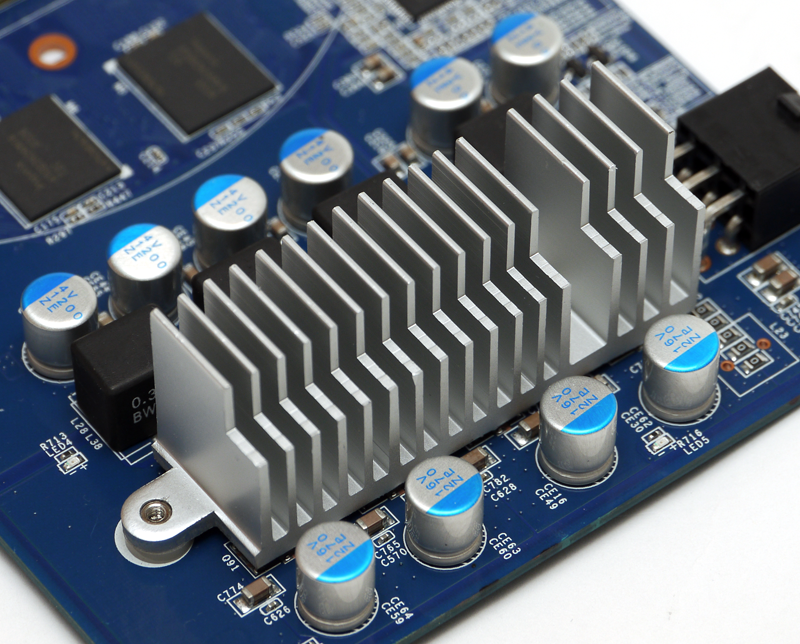

MOSFET散熱片 http://pic.xfastest.com/elvis/Review/Galaxy-550Ti-GC/Galaxy-550Ti-GC-25.png

鋁質與GPU散熱器相同扣具螺絲固定點有包覆緩衝防震橡膠墊圈 http://pic.xfastest.com/elvis/Review/Galaxy-550Ti-GC/Galaxy-550Ti-GC-26.png

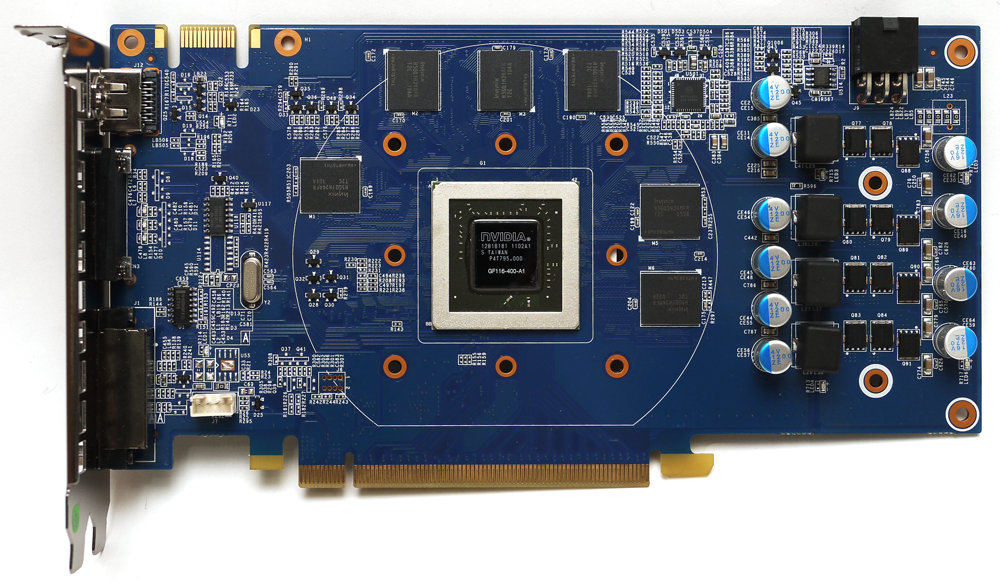

傳導介質為導熱膠布顯示卡裸卡主體 http://pic.xfastest.com/elvis/Review/Galaxy-550Ti-GC/Galaxy-550Ti-GC-27.png

GPU真身 http://pic.xfastest.com/elvis/Review/Galaxy-550Ti-GC/Galaxy-550Ti-GC-28.png

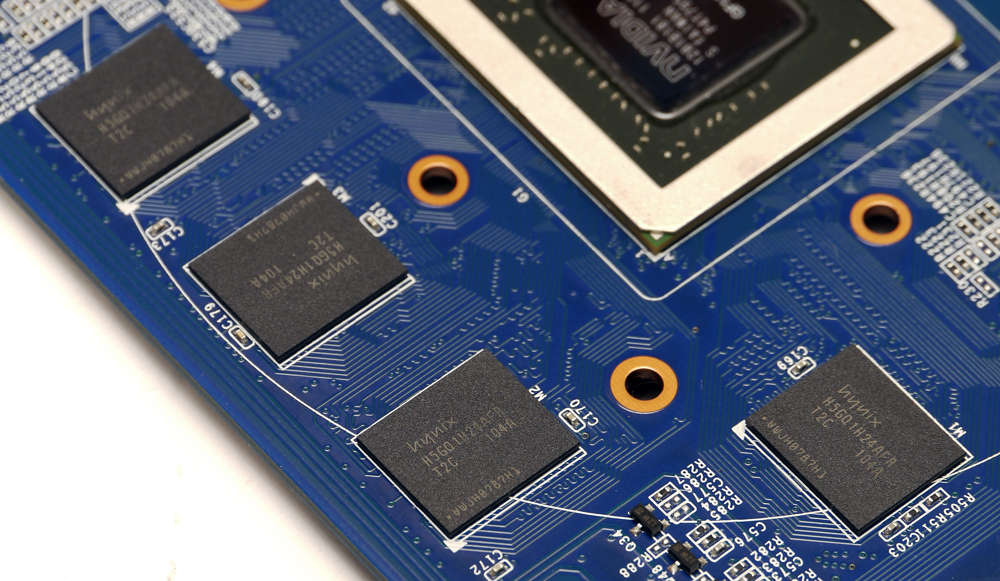

GF116-400-A1 與PCB背面相對應的同樣位置也是鑲上GDDR5顆粒 http://pic.xfastest.com/elvis/Review/Galaxy-550Ti-GC/Galaxy-550Ti-GC-29.png

4顆Hynix H5GQ1H24AFR-T2C的1Gb GDDR5顆粒及2顆Hynix H5GQ2H24MFR-T2C的2Gb GDDR5顆粒 http://pic.xfastest.com/elvis/Review/Galaxy-550Ti-GC/Galaxy-550Ti-GC-30.png

I/O Port內部 http://pic.xfastest.com/elvis/Review/Galaxy-550Ti-GC/Galaxy-550Ti-GC-31.png

DVI與HDMI皆設有金屬屏蔽遮罩 4 pin PWN溫控風扇插座 http://pic.xfastest.com/elvis/Review/Galaxy-550Ti-GC/Galaxy-550Ti-GC-32.png

SLI橋接pin http://pic.xfastest.com/elvis/Review/Galaxy-550Ti-GC/Galaxy-550Ti-GC-33.png

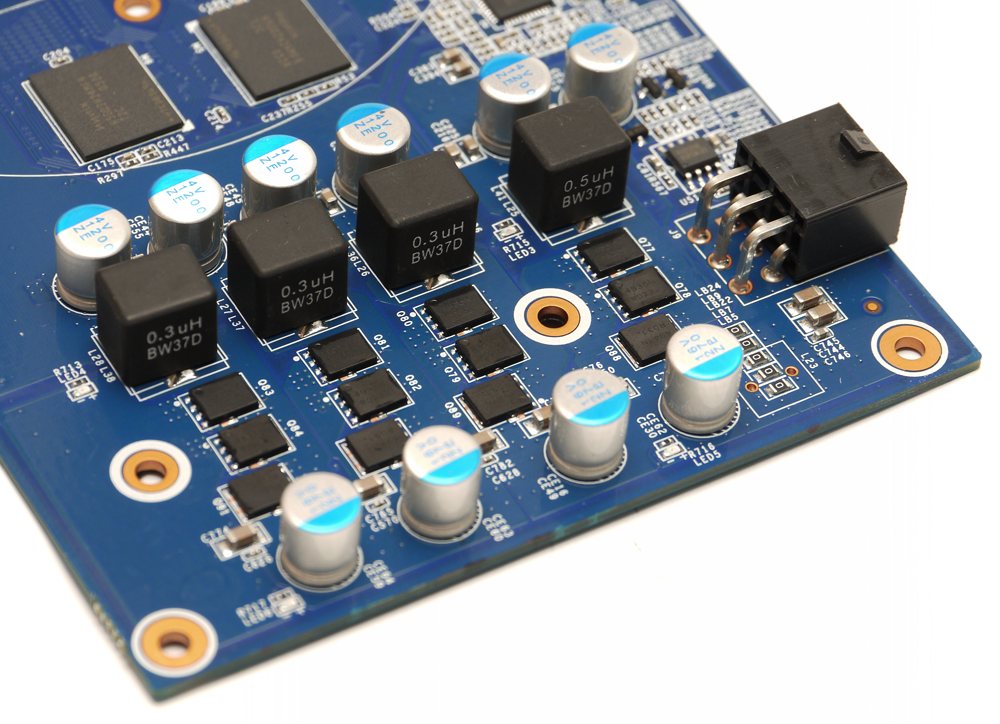

1組，可運行雙卡SLI MOSFET供電區 http://pic.xfastest.com/elvis/Review/Galaxy-550Ti-GC/Galaxy-550Ti-GC-36.png

採用3+1相供電模式與銀河雪白版的GTX 550 Ti相同都設有散發藍光的LED燈 http://pic.xfastest.com/elvis/Review/Galaxy-550Ti-GC/Galaxy-550Ti-GC-34.png

測試平台設備測試平台與成績引用自http://www.xfastest.com/cms/VGA/ CPU: Intel Core i7-2600K OC @ 4.8GHz Cooler: CoolerMaster V6-GT Thermal Compound: Antec Formula 7 MB: ASRock Fatal1ty P67 Professional Memory: Kingston HyperX T1 DDR3 @ 1600MHz 8-8-8-24 Power Supply: Antec SG1200W Chassis: Lani-Li PC-P50R http://pic.xfastest.com/elvis/XF-VGA/XF-VGA-Bench-01.jpg

Benchmark Score性能表現 3DMark06 (DirectX 9) http://pic.xfastest.com/XF-VGA/X00065-01.jpg

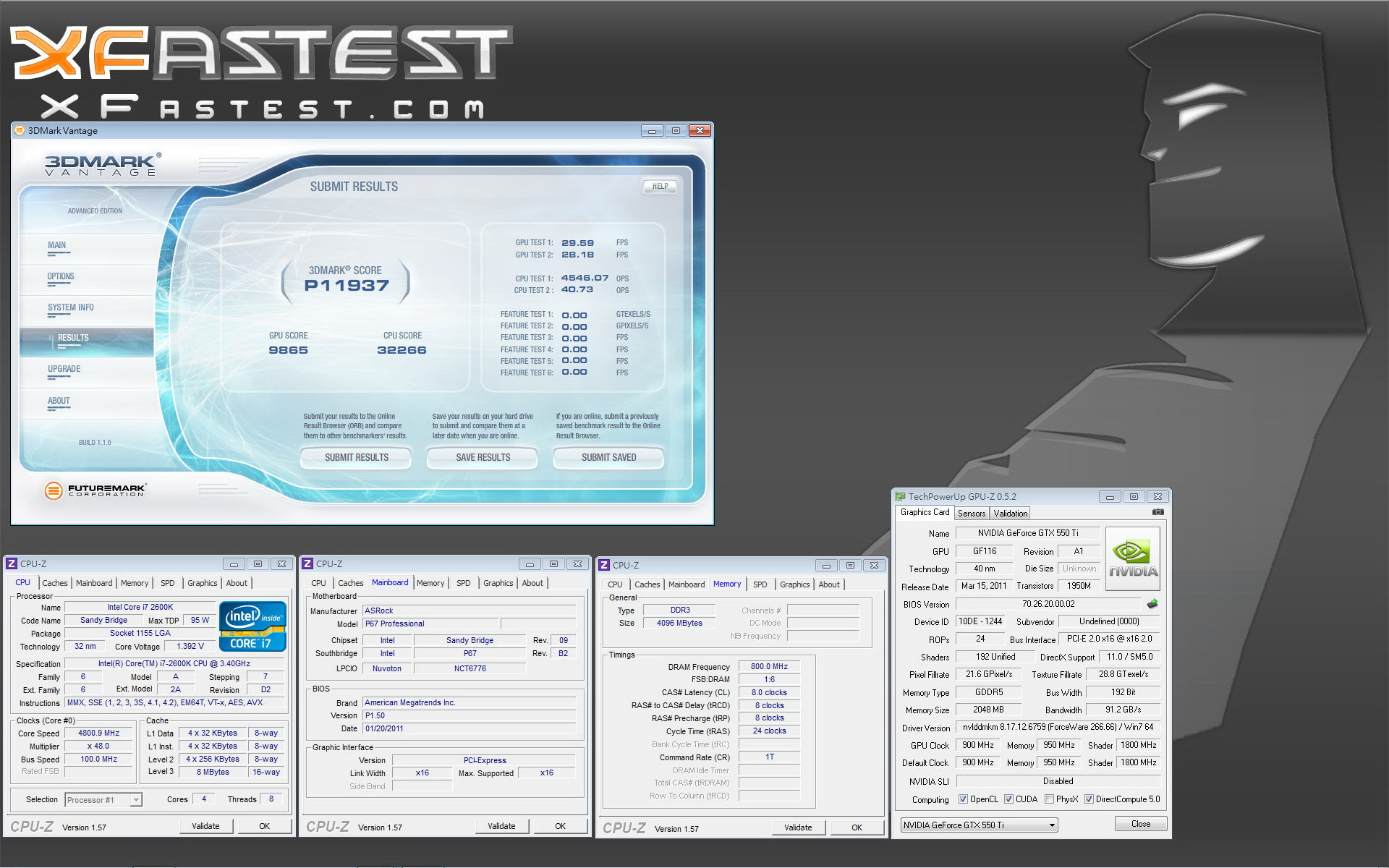

3DMarkVantage Performance (DirectX 10) http://pic.xfastest.com/XF-VGA/X00065-02.jpg

3DMarkVantage Extreme (DirectX 10) http://pic.xfastest.com/XF-VGA/X00065-03.jpg

Unigine Heaven 2.1 (DirectX 11, 1920x1080, 8xAA, 16xAF) http://pic.xfastest.com/XF-VGA/X00065-11.jpg

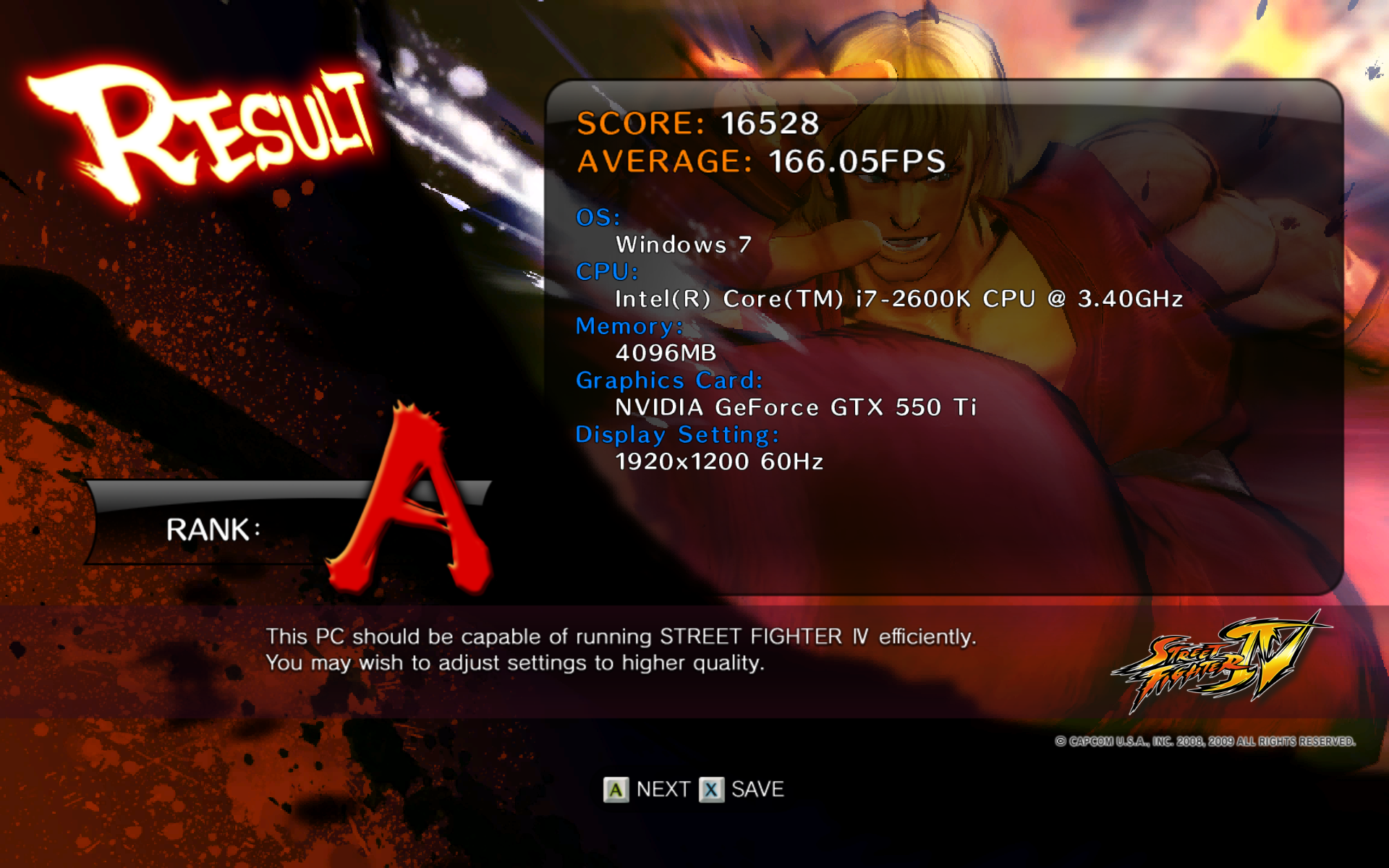

遊戲性能表現快打旋風 4 (1920x1200, 預設特效) http://pic.xfastest.com/elvis/Review/Galaxy-550Ti-GC/StreetFighterIV.png

太空戰士 XIV (1920x1080, 預設特效) http://pic.xfastest.com/elvis/Review/Galaxy-550Ti-GC/FFFXIV.png

惡靈古堡 5 (DirectX 10, 1920x1200, 預設特效) http://pic.xfastest.com/elvis/Review/Galaxy-550Ti-GC/RE5.png

HAWX 2 (DirectX 11, 1920x1200, 預設特效) http://pic.xfastest.com/elvis/Review/Galaxy-550Ti-GC/HAWX2.png

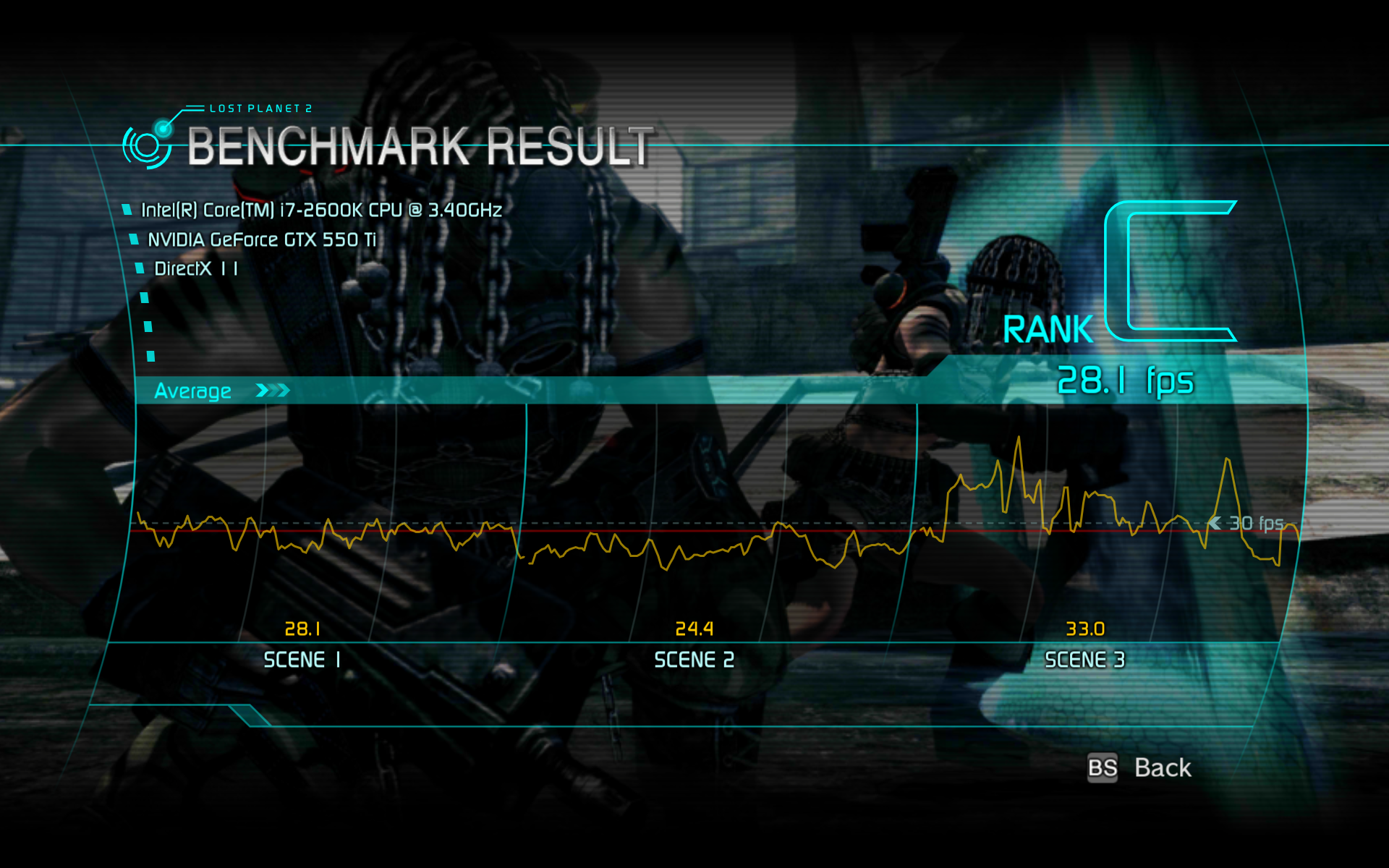

失落的星球 2 (DirectX 11, 1920x1200, 預設特效) http://pic.xfastest.com/elvis/Review/Galaxy-550Ti-GC/LP2.png

功耗/溫度表現安裝於Lani-Li PC-P50R機箱內並關上側板 http://pic.xfastest.com/elvis/XF-VGA/XF-VGA-Bench-02.jpg

使用FurMark 1.9.0燒機測試整機最大耗電291W http://pic.xfastest.com/XF-VGA/X00065-07.jpg

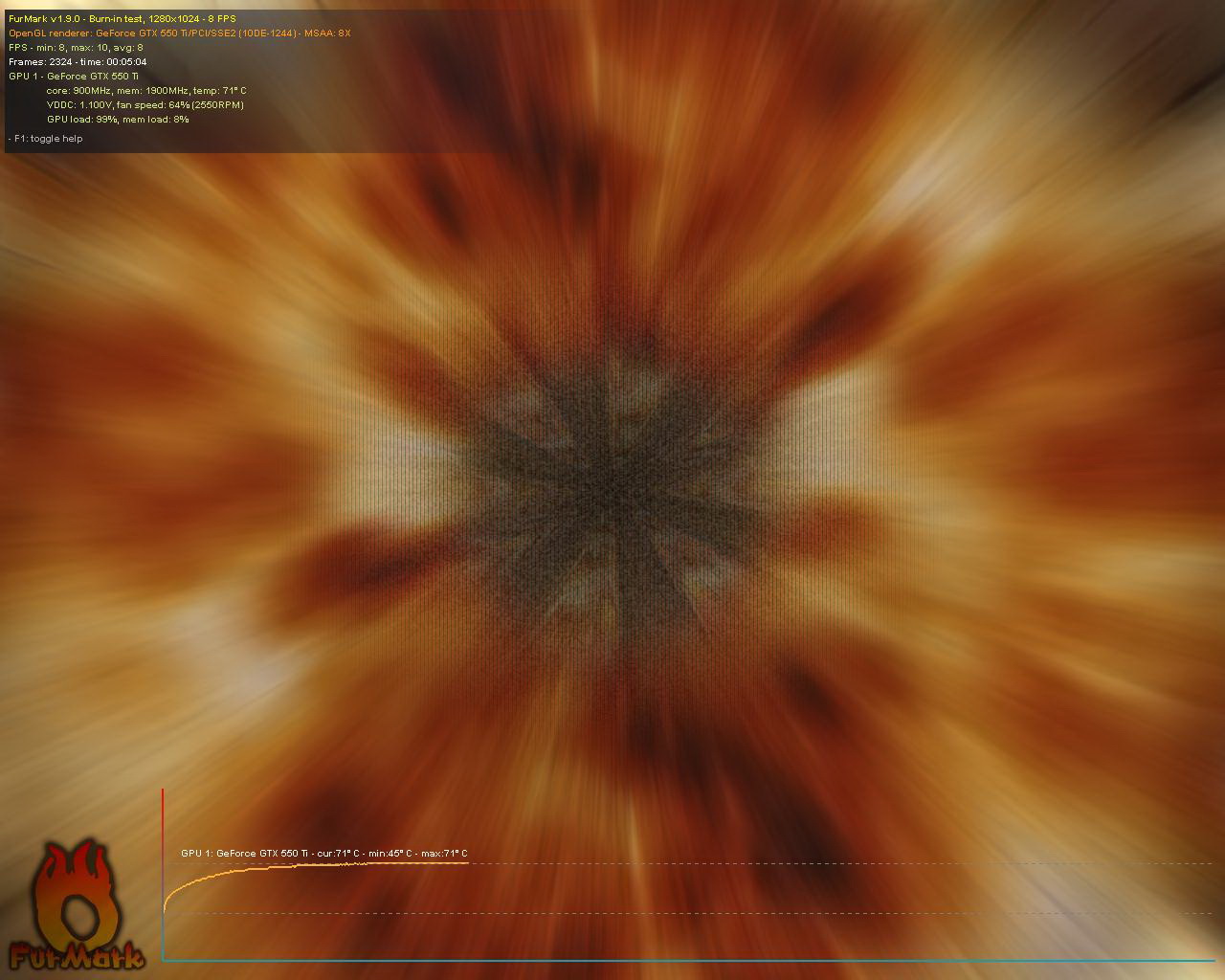

燒機5分鐘 http://pic.xfastest.com/XF-VGA/X00065-06.jpg

GPU溫度穩定在71ﾟC 小結效能方面算是非常中規中矩，不過在高解析度與高反鋸齒的狀態下(如Heaven)2GB的顯存倒是可以增進一些效能由於搭配2GB的顯存，GPU核心預設電壓比普通版的稍微高出了一些，耗電量與溫度自然提高了些許 GTX 550 Ti採用的風神版的散熱器雖然沒有熱導管設計，但也是足夠應付GPU的發熱，好處還是在於調整與拆卸風扇方便清理比較可惜的就是目前GTX 550 Ti的價格帶還是訂太高，就讓我們期待一下挑水表演吧! 簡單分享Galaxy 影馳 GTX 550 Ti 2GB風神版，感謝各位的收看! -- ※ 發信站: 批踢踢實業坊(ptt.cc) ◆ From: 220.133.46.24
